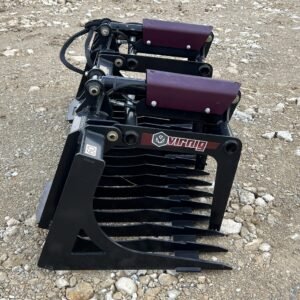

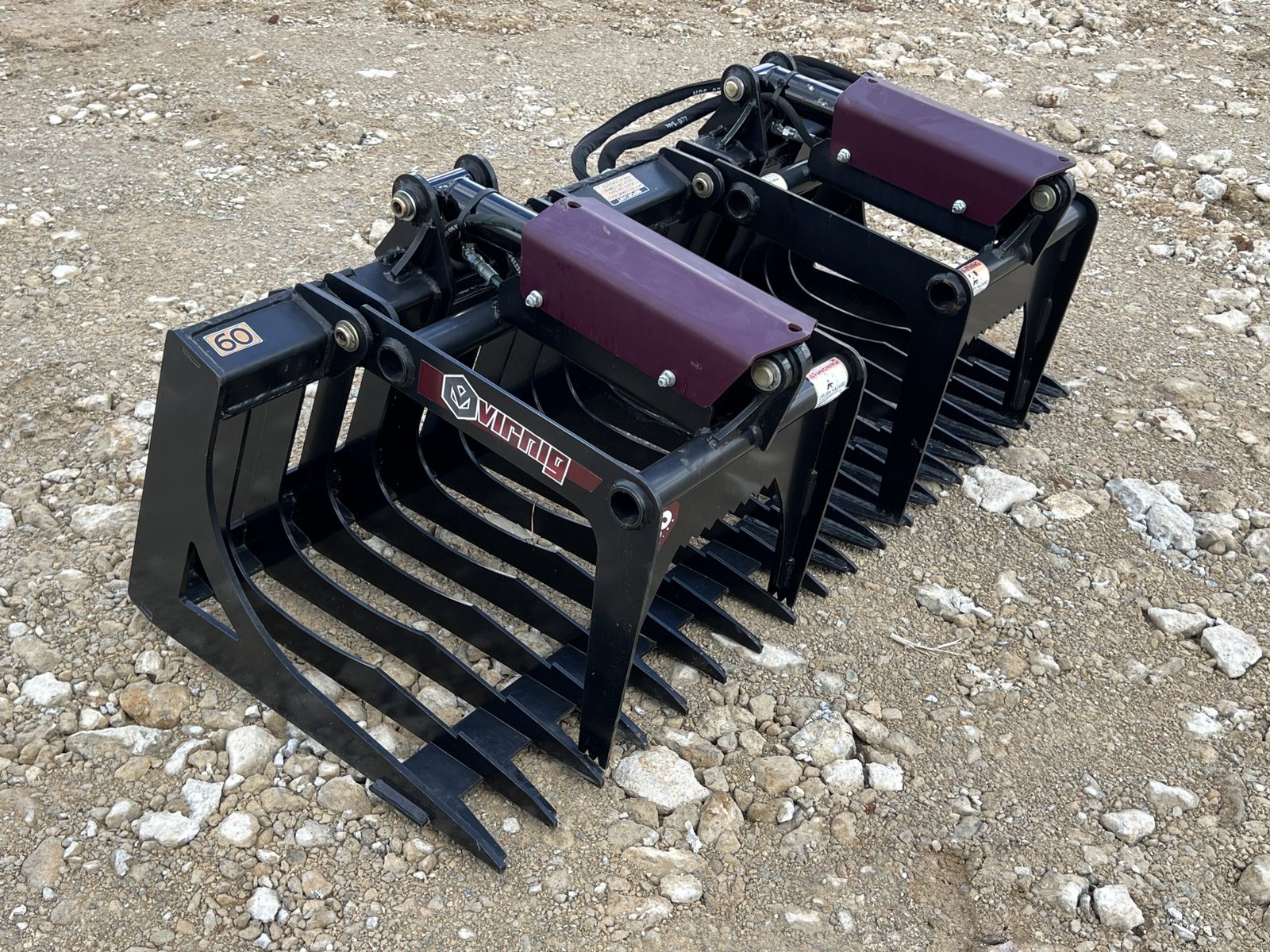

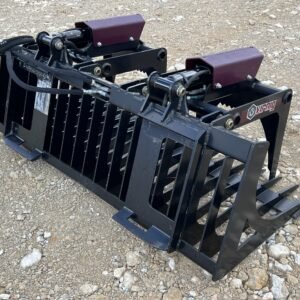

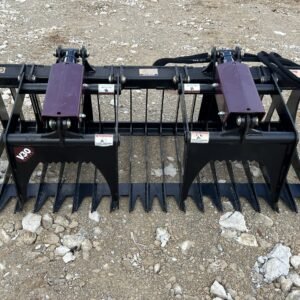

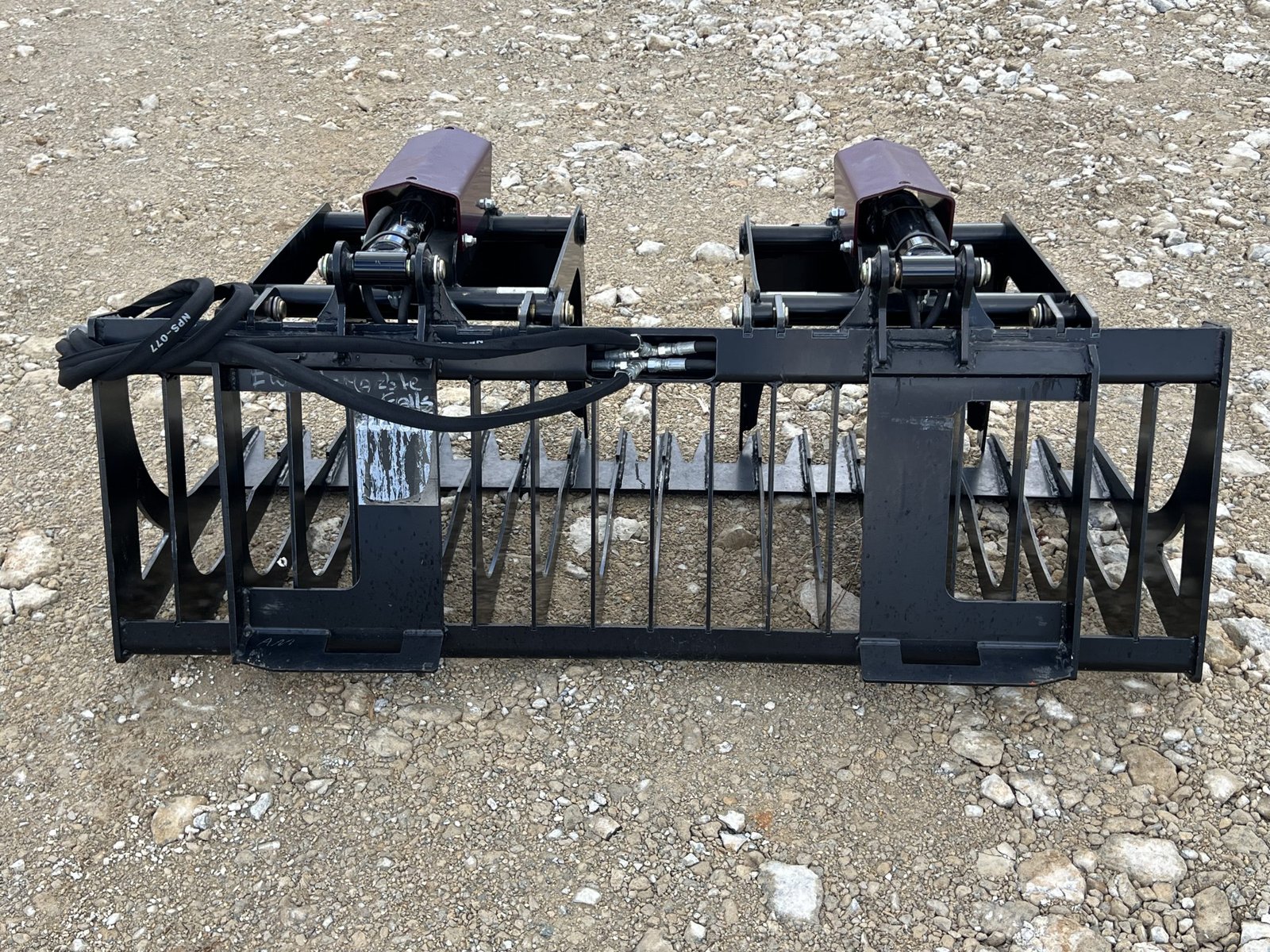

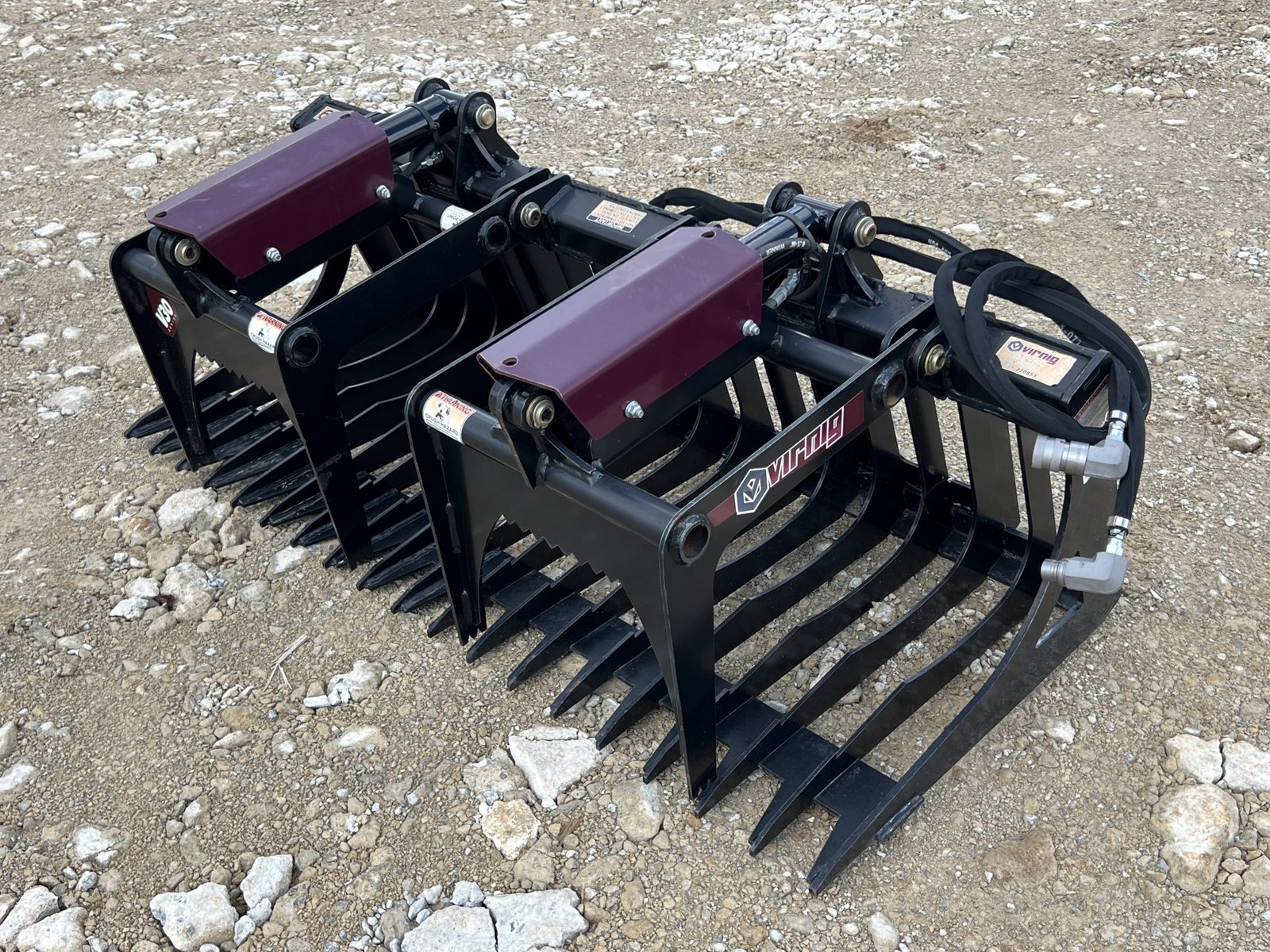

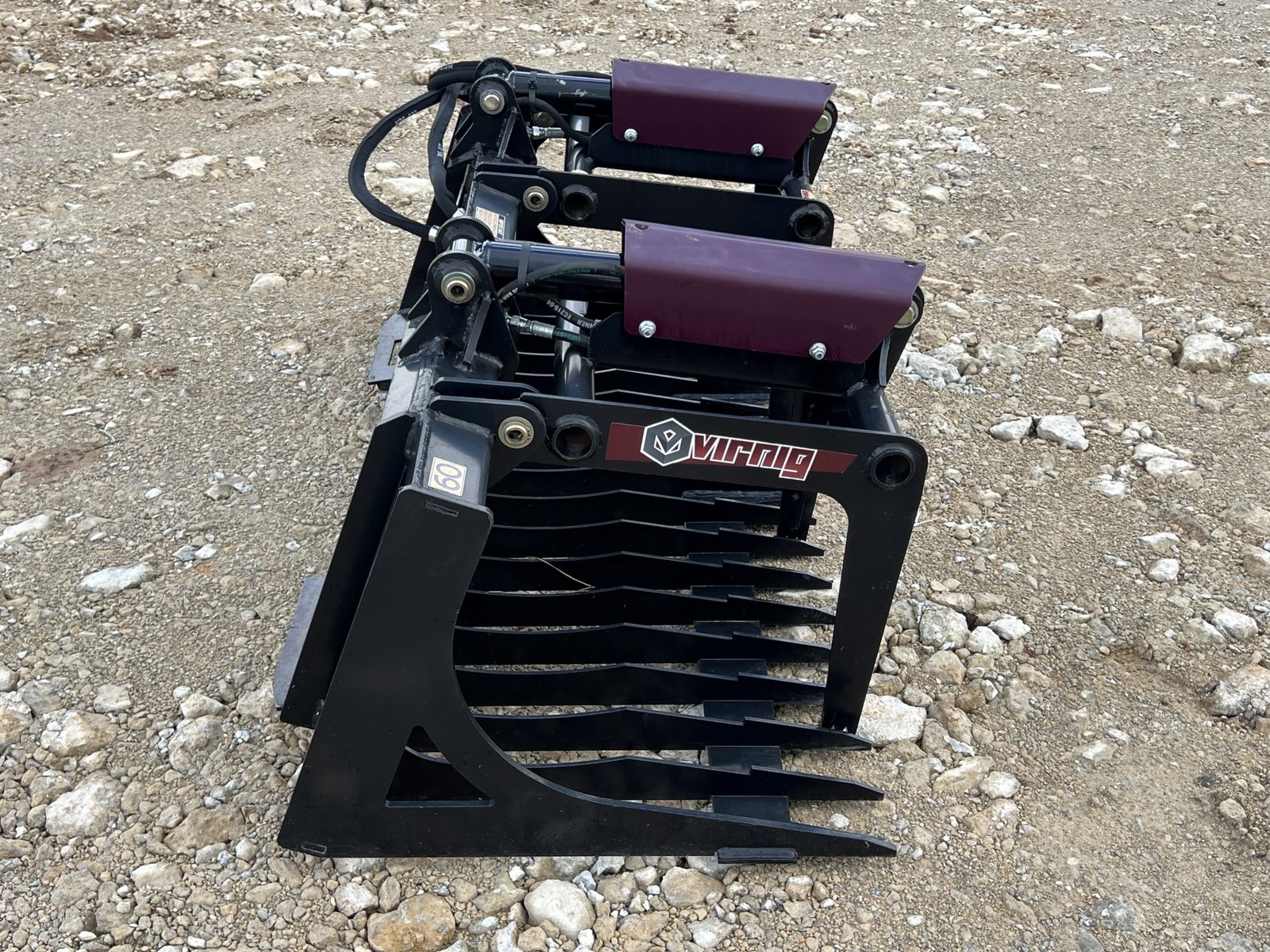

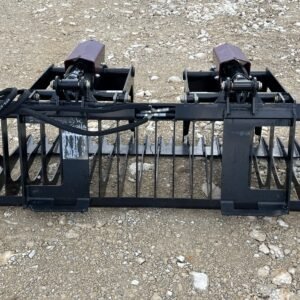

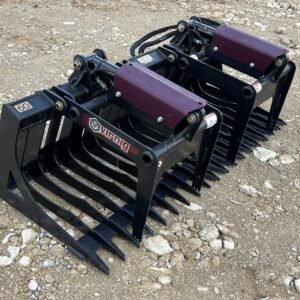

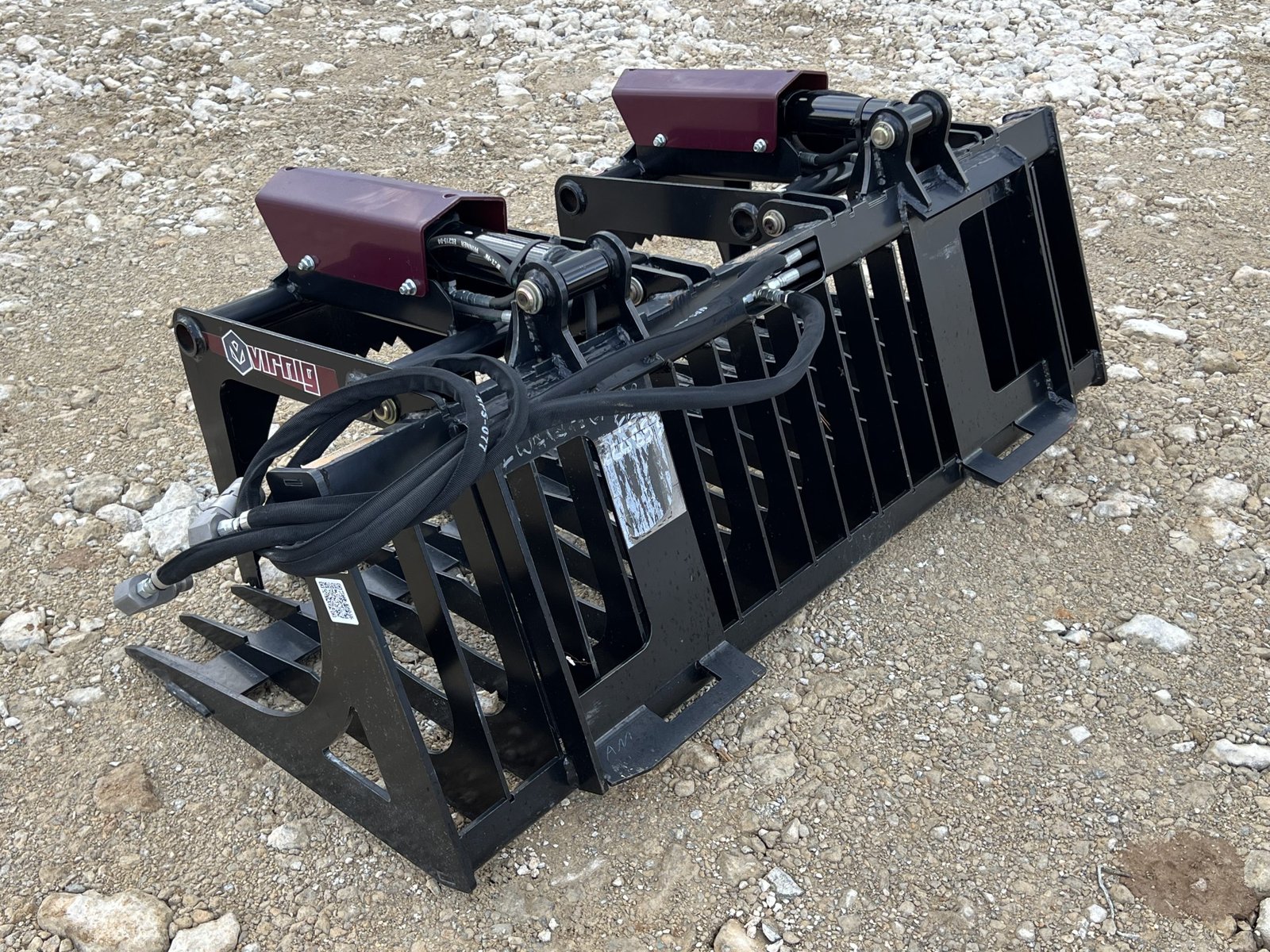

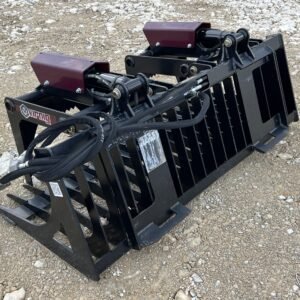

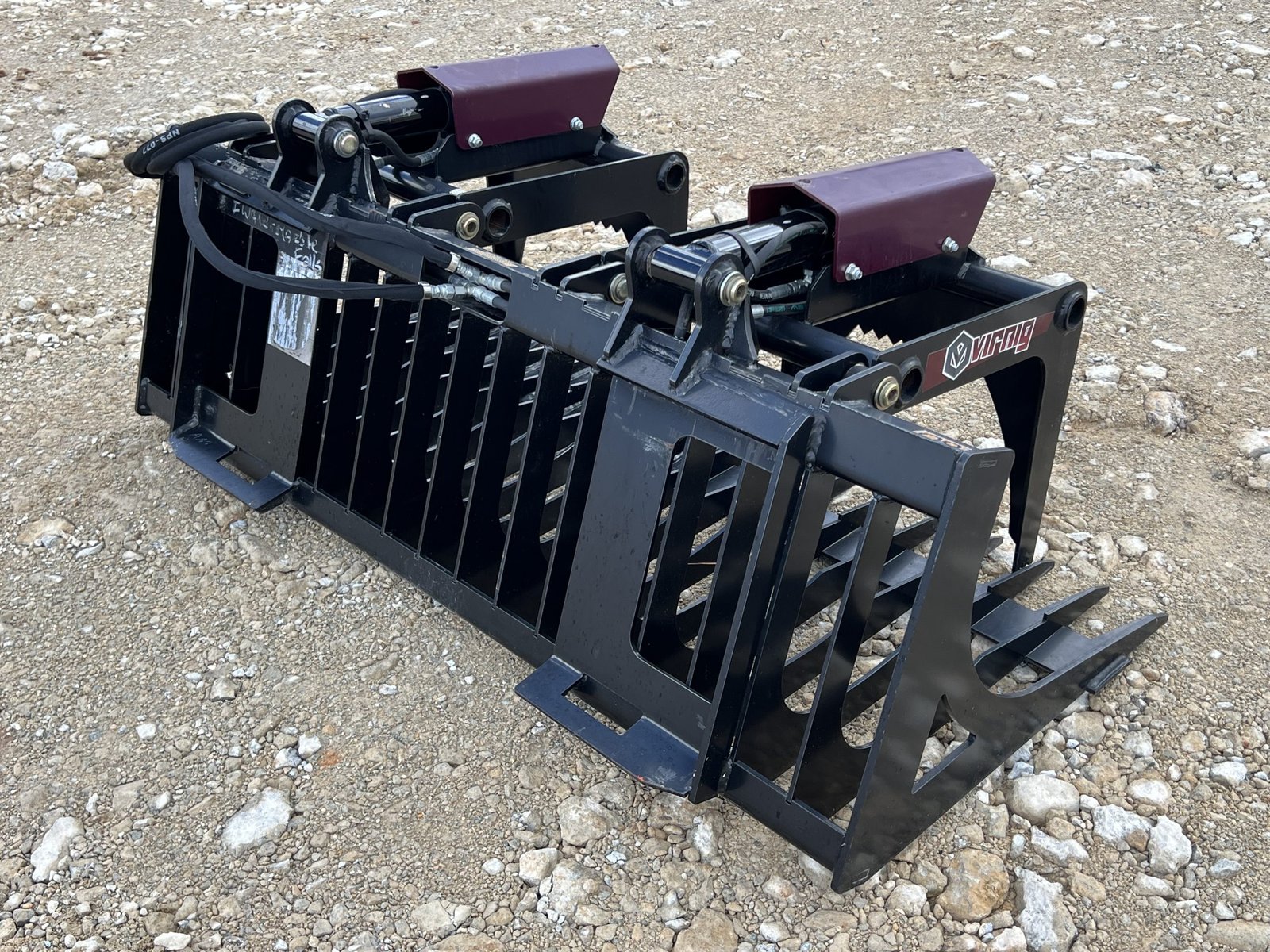

Virnig 60″ V30 Skeleton Rock Bucket Grapple Fits Compact Tractor Quick Attach

The Virnig V30 Compact Tractor Rock Grapple is designed for compact loaders with an operating capacity under 1,500 lbs, giving smaller machines the ability to handle rocks, brush, and uneven loads with ease. At 60″ wide, this grapple allows you to sift dirt from rocks and debris, while securely clamping irregular material.

Each tine is cut from a single piece of 1/4″ Grade 50 steel and fully gusseted for strength. Curved side plates improve handling of wide material, while the rock dam and notched tine tips hold rocks securely in place. The grapple is equipped with Nitrosteel cylinder rods and Teflon-coated bushings for long-lasting, smooth operation.

Key Features:

• 60″ wide skeleton grapple for compact tractors

• Fits loaders with less than 1,500 lb operating capacity

• One-piece Grade 50 steel tines with gussets for rigidity

• Curved side plates for wider material handling

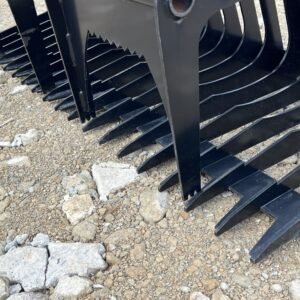

• Rock dam and notched tips hold rocks securely

• Dual grapple design for clamping uneven loads

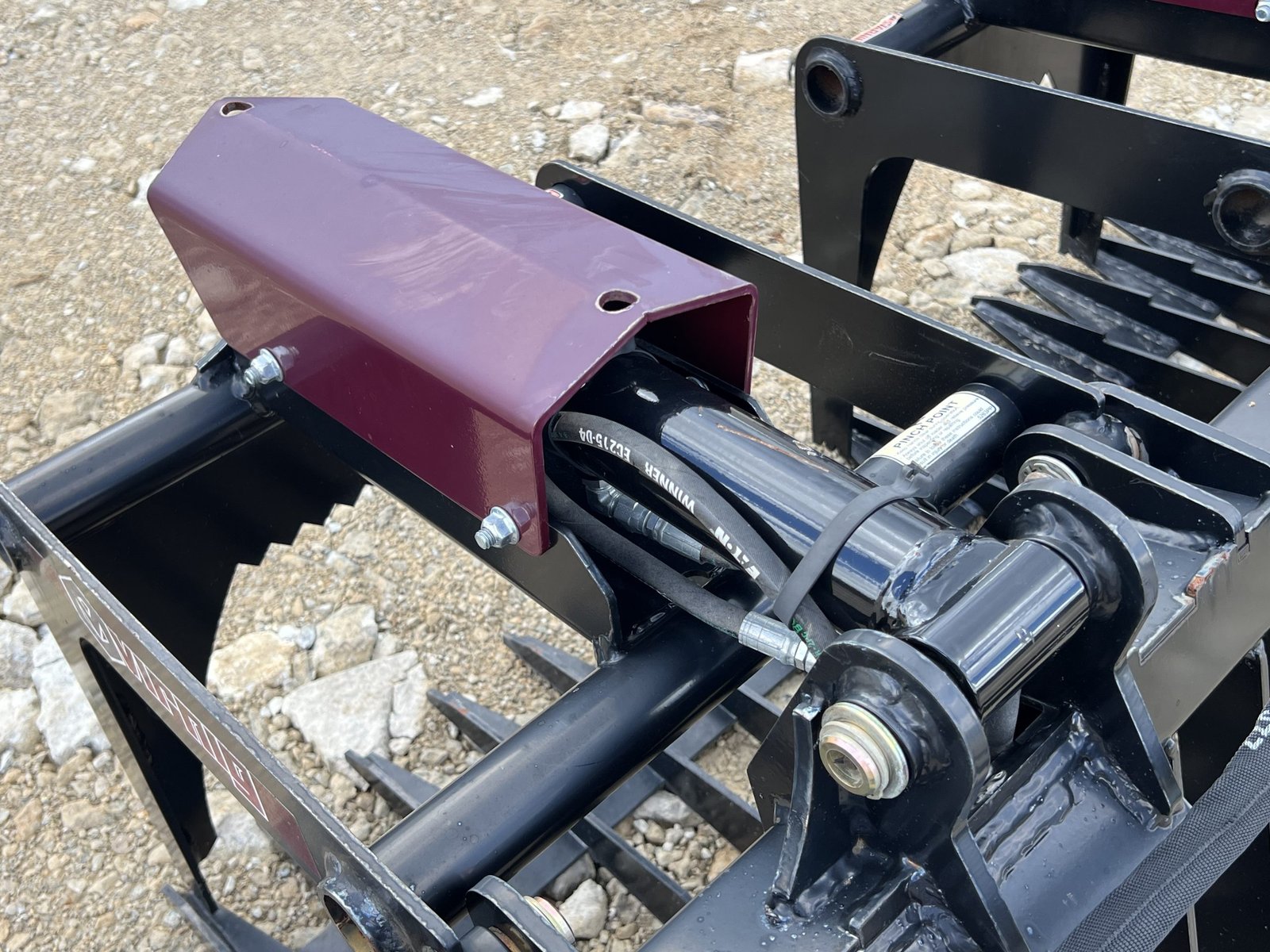

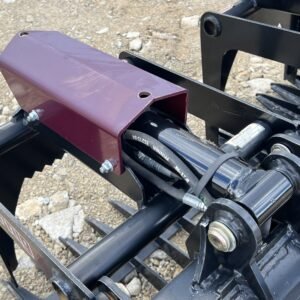

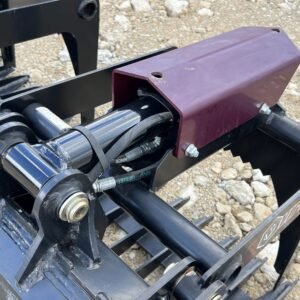

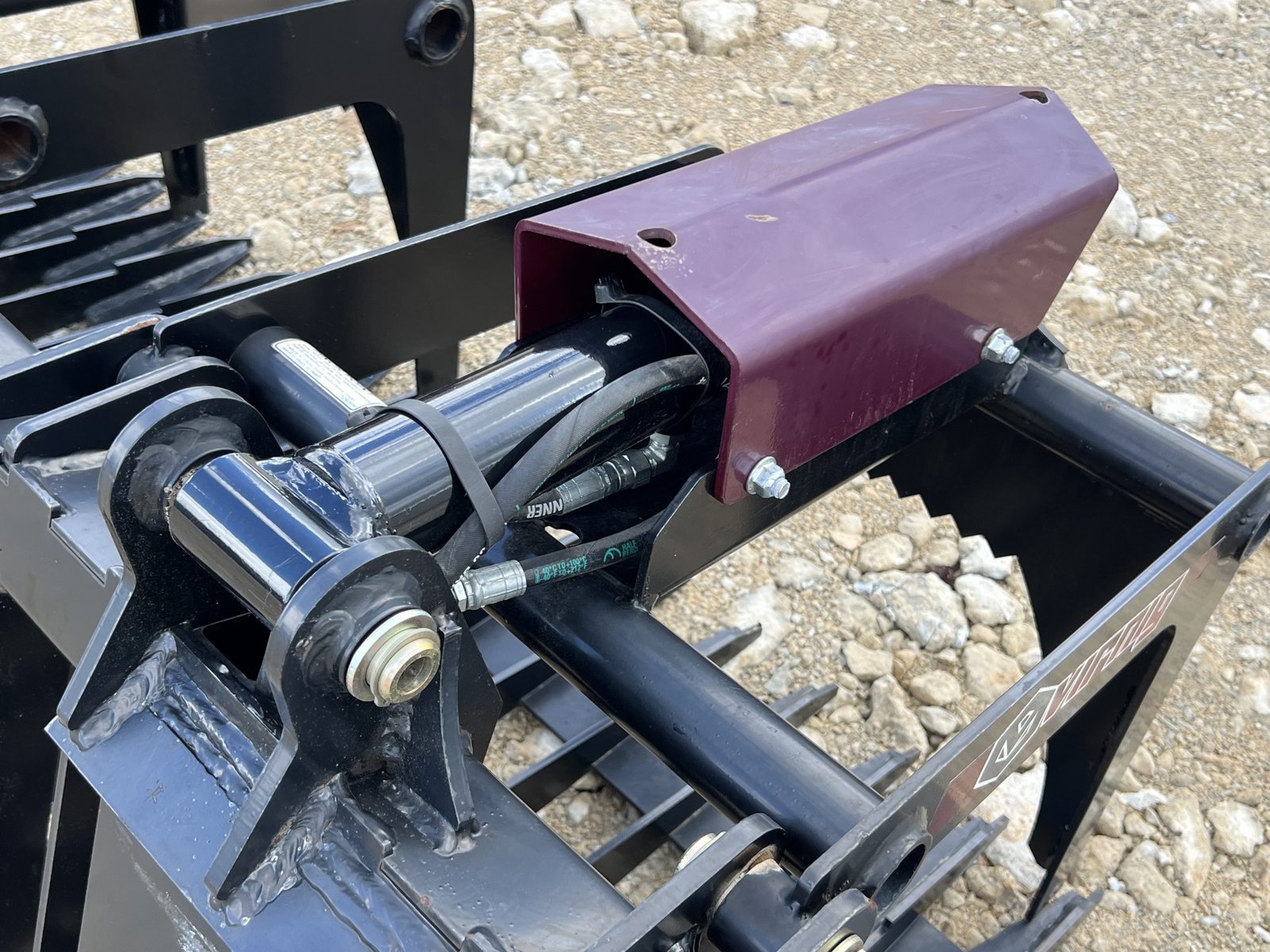

• Nitrosteel cylinder rods with Teflon-coated bushings for durability

Specifications:

• Weight: 385 Pounds

• Number of Tines (with sides): 19

• Tine Spacing: 3.1″

• Tine Thickness: 0.25″

• Side Plate Thickness: 0.375″

• Grapple Jaw Opening: 28.7″

• Cylinders: 2″ bore x 6″ stroke

• Pin Diameter: 1.0″

• Recommended Loader Capacity: Less than 1,500 lbs

• Overall Width: 60.9″

• Overall Height: 22.9″

• Bucket Height: 19″

• Overall Depth: 29″

• Inside Depth: 23.5″
