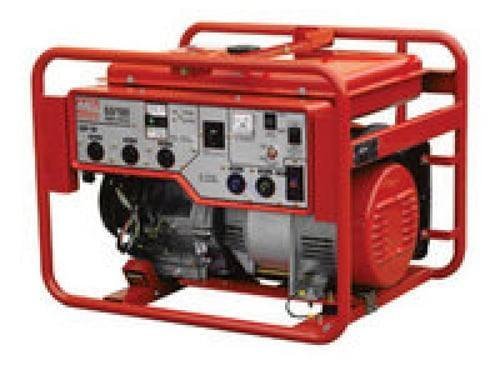

Multiquip GDP5HA High-Cycle Portable Generator
5kW/180Hz-4kW60Hz, 11-HP Honda
The Multiquip GDP5HA Generator is a high-cycle portable generator that delivers 5kW/180Hz-4kW60Hz and is powered by a 11 hp Honda GX340 engine. It is the industry’s only generator that simultaneously produces 60Hz/180Hz power for standard tools and high-cycle vibrators.
- Powers up to three 2-inch (50 mm) FXA-series high cycle vibrators
- Folding lifting bale is standard equipment
- Control panel has separate 60Hz and 180Hz outlets
- Full panel GFCI protection – OSHA and NEC compliant
- Standard voltmeter assists in troubleshooting
- Produces 3.6kW of continuous 120/240-volt 60-cycle power for standard power tools
| Alternator Design | Brushless Revolving Field Type | |
| Fuel Tank Capacity | 5 gal | 19 L |
| Frequency | 60/180 Hz | |
| Phase | Single | |
| Continuous Output | 3.6 kW | |
| Maximum Output | 4 kW | |
| Voltage | 120/240 V | |
| Continuous Amps | 30A @ 120V | 15A @ 240V |
| Maximum Amps | 33A @ 120V | 16.5A @ 240V |
| Phase | 3-Phase | |
| Continuous Output | 5 kVA | |
| Voltage | 230 V | |
| Continuous Amps | 12.5 A | |
