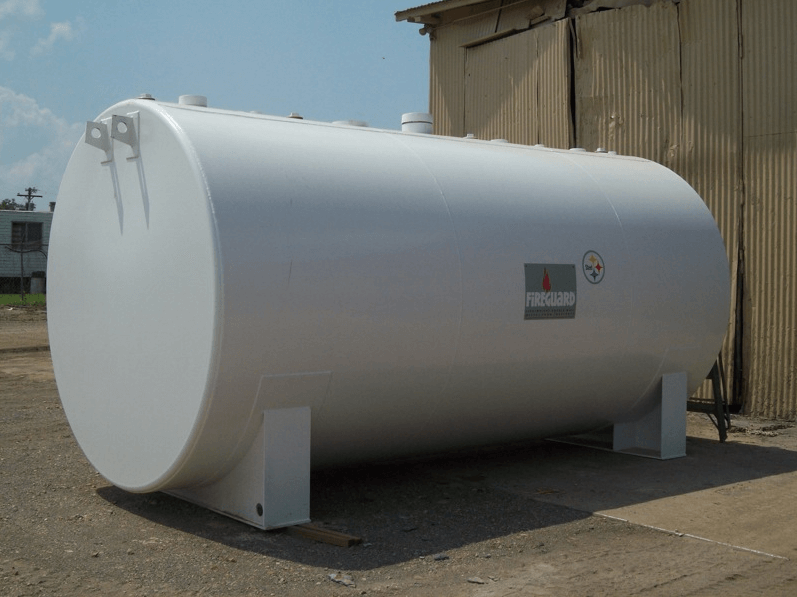

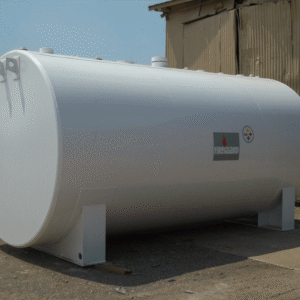

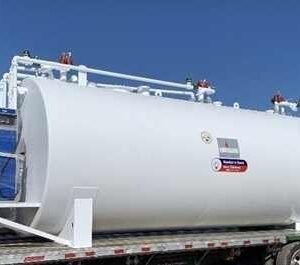

Newberry Tanks Fireguard® Tanks are insulated double wall fire protected above ground tanks that meet UL 2085, UL 142, NFPA 30 & 30A standards. Fireguard Tanks are certified to the Steel Tank Institute (STI/SPFA) specifications.
This means the tank production is subject to Independent Quality Control Inspections. Thermally insulated Double-Wall Fire-Protected Aboveground Storage Tanks conform with the following standards and code requirements:
- UL 2085 standard for insulated secondary containment aboveground tank.
- Built to UL 142, NFPA 30 & 30A Codes.
- IFC and CARB Standing Loss Control air emissions.
- STI Standard F941 for Thermally Insulated Aboveground Storage Tanks.
- Rectangular and Vertical Construction Available.
Fireguard® Optional Features:
- Single or double bulkheads for internal compartments.
- Emergency Vents.
- Fueling system equipment (remote overfill, gauges, pumps, pump platforms, canopies, spill containment, ladders).
- Optional exterior and internal coatings.
- Support designs available for seismic compliance.
- TurnKey solutions for assembly and installation.
- Enhanced Ballistics Resistance in accordance with UL 752 Level 9.
Fireguard Sizes & Dimensions:
- 300 Gallon: 38W x 60L x 38H (inches); 12 gauge; 2,700 pounds
- 550 Gallon: 48W x 72L x 48H (inches); 12 gauge; 3,350 pounds
Product Specification Sheets:
- Spec Sheet (300 gallon)
- Spec Sheet (550 gallon)
