The Fol-Da-Tank Single Lane Water Tank is a water tank designed for efficient fire fighting operations in rural areas with narrow roads.
The Single Lane tank is available with rectangular, circular or square tank with bladder designs.
The single lane tank design will give you maximum capacity on the ground without affecting the opposite lane of traffic. This design works especially well for narrow rural roads that have little or no shoulder.
Choose Single Lane Type I, Type II or Max models:

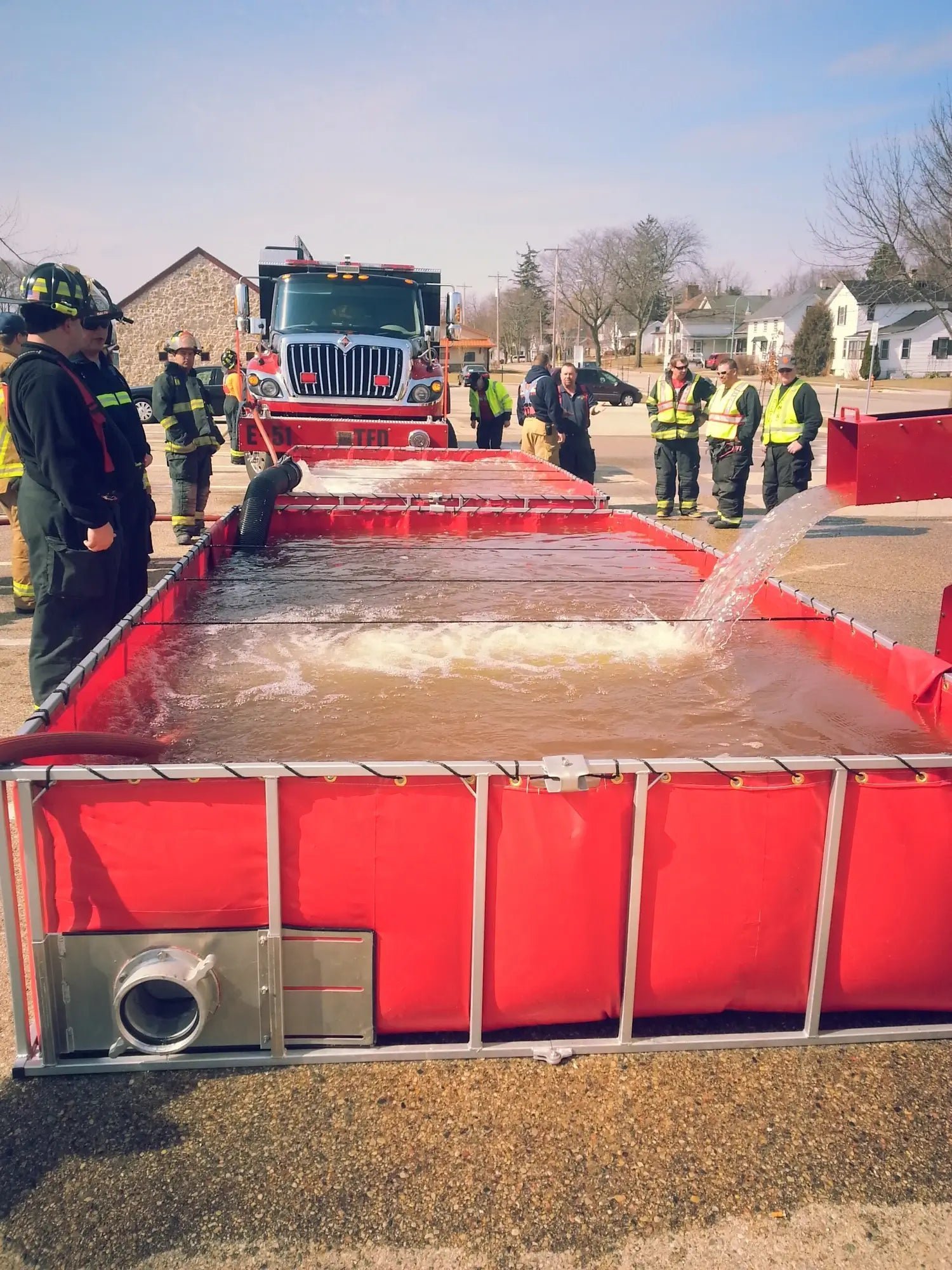

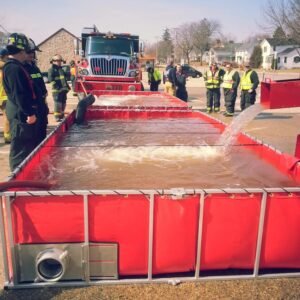

- Type I – Rectangular shaped design.

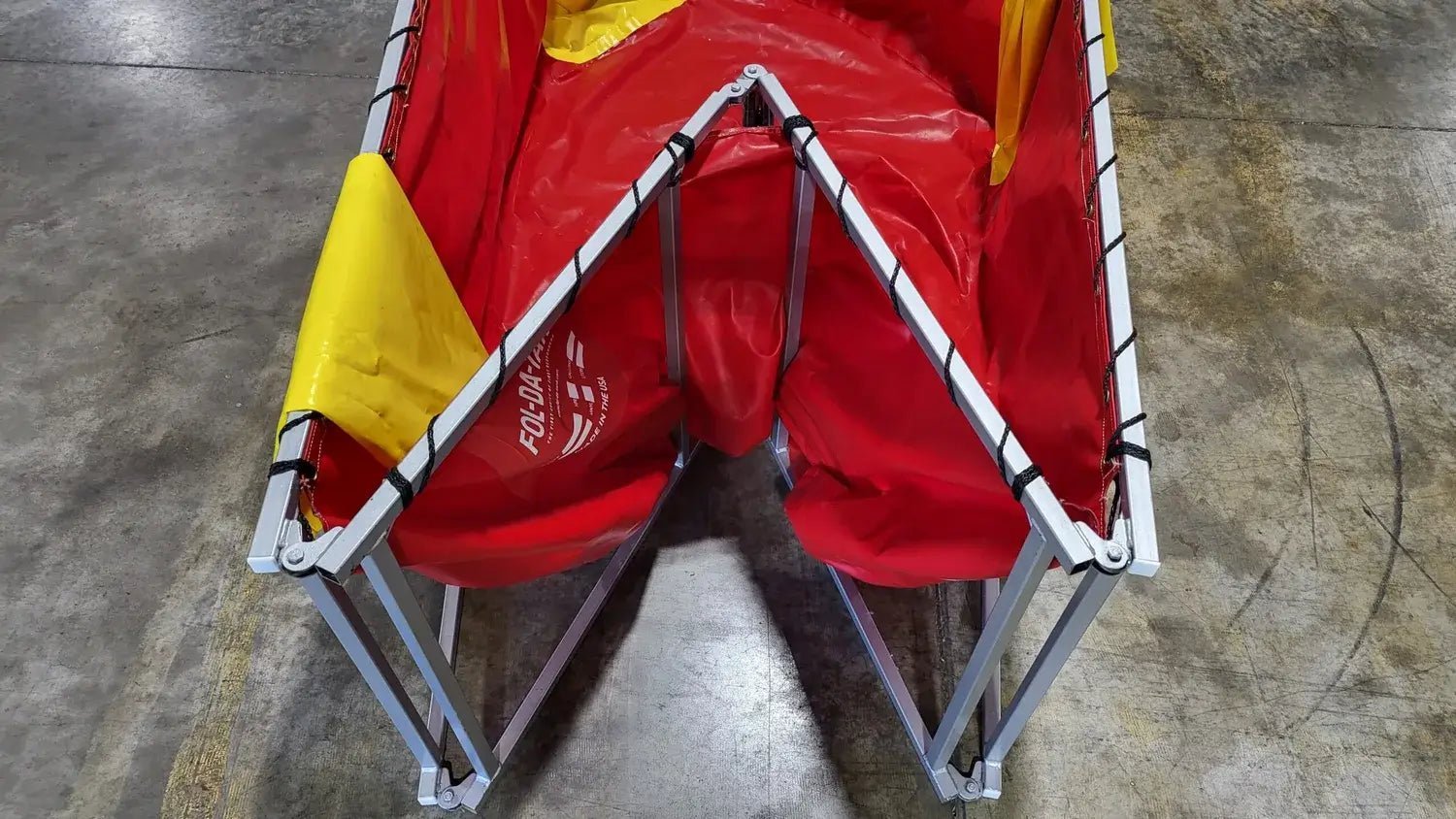

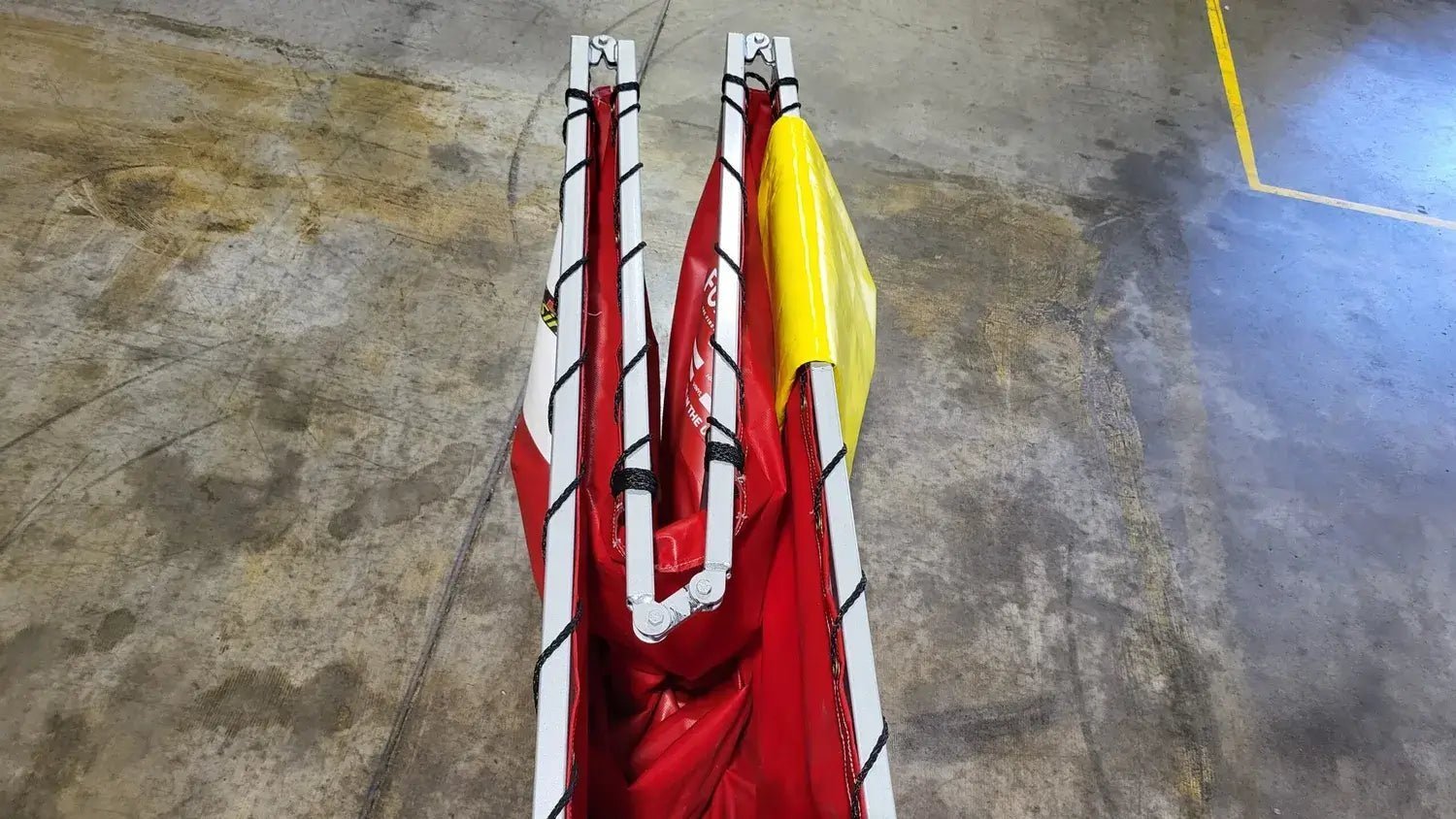

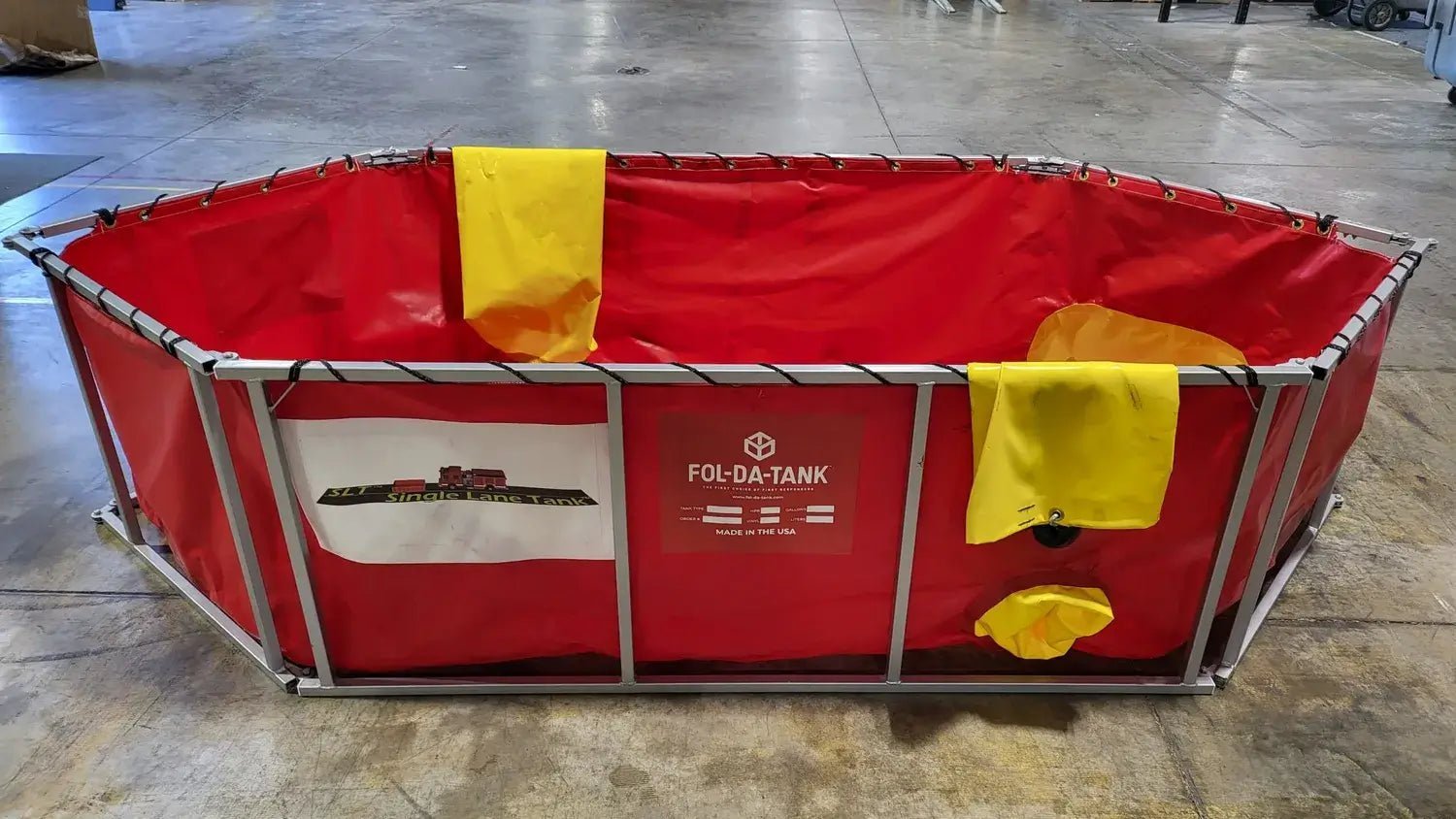

- Type II – Circular shaped design.

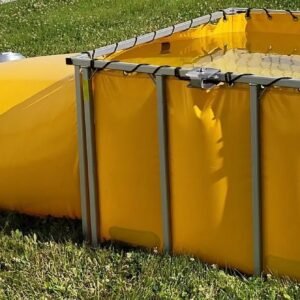

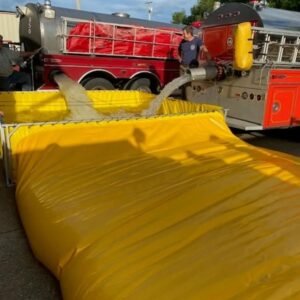

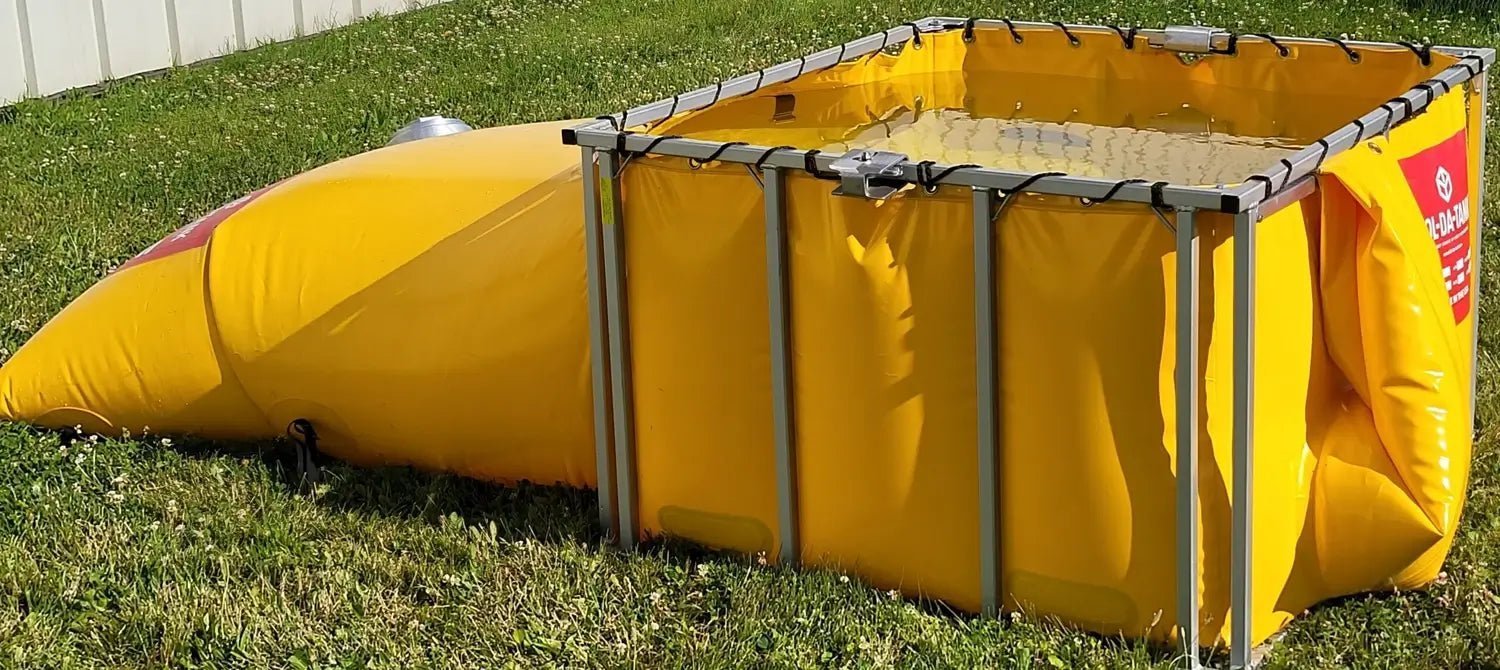

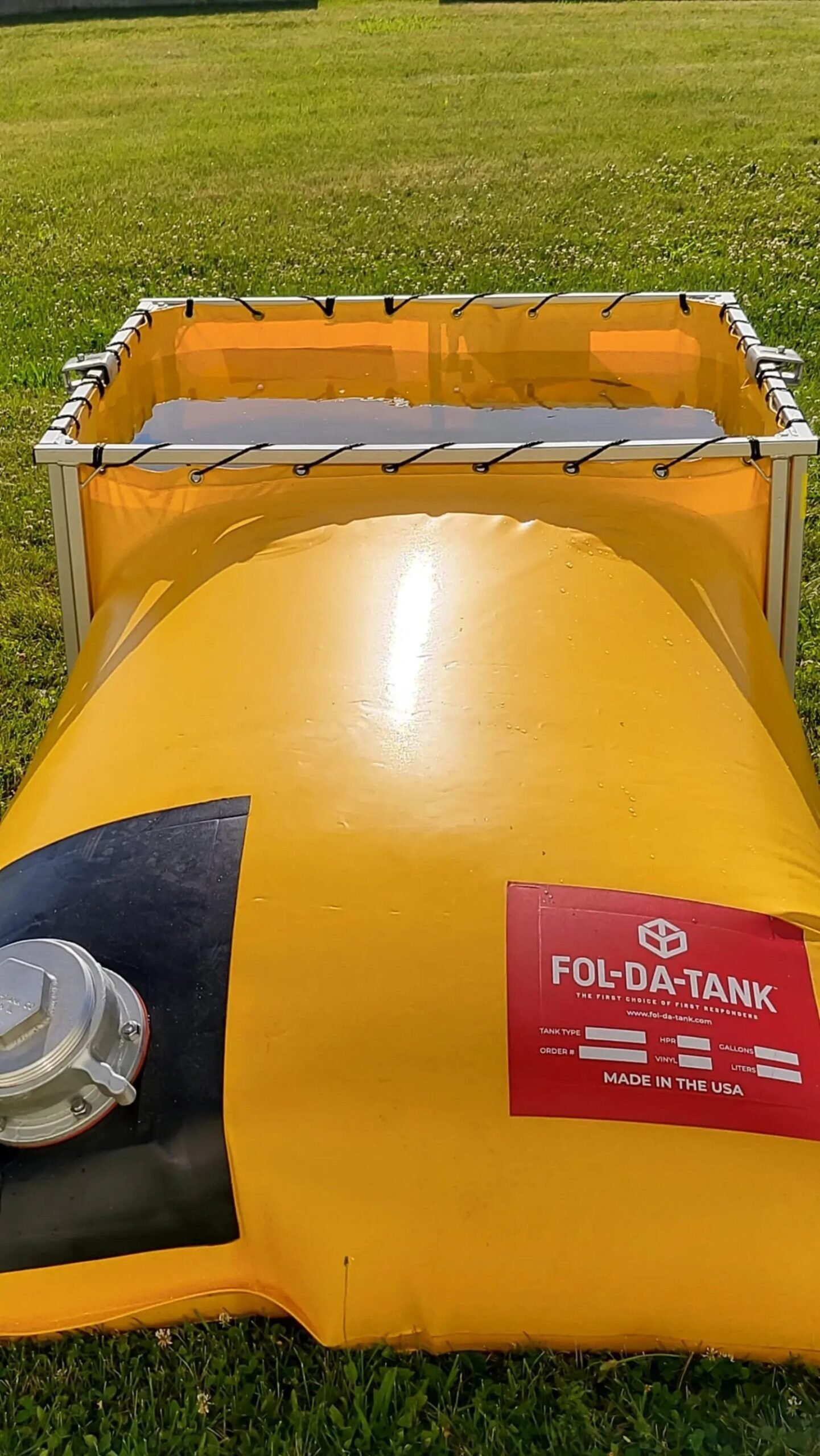

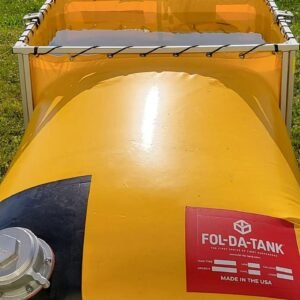

- Max – Square shaped with built-in bladder for extra water storage capacity.
Features
- Available in steel or aluminum.
- Choose Rectangular, Circular or Square shaped tank.
- Narrow frame design for narrow rural roads with limited shoulders.
- Narrow frame can be setup without impacting the opposing lane of traffic.
- Max model offers built-in bladder for extra capacity.
Sizes / Dimensions / Closed Dimensions / weight (steel / aluminum)
Type I
- 2,000 gallons: 168″L x 96″W x 29″H / 168″L x 8″W x 29″H / 165 / 125 pounds
- 2,500 gallons: 192″L x 108″W x 29″H / 192″L x 8″W x 29″H / 165 / 130 pounds
- 3,000 gallons: 192″L x 120″W x 29″H / 192″L x 8″W x 29″H / 165 / 135 pounds
Type II
- 2,000 gallons: 228″L x 93″W x 29″H / 132″L x 8″W x 29″H / 165 / 125 pounds
- 2,500 gallons: 264″L x 96″W x 29″H / 168″L x 8″W x 29″H / 175 / 130 pounds
- 3,000 gallons: 276″L x 108″W x 29″H / 168″L x 8″W x 29″H / 185 / 135 pounds
Max / Tank / Tank + Bladder Gallons / Open Dimensions no bladder & with bladder
- 1,000/2,500 gallons: 8’3″L x 8’3″W x 29″H / 8’3″L x 22’3″W x 29″ w/ bladder
- 1,500/3,500 gallons: 10’3″L x 10’3″W x 29″H / 10’3″L x 24’8″W x 29″ w/ bladder
- 2,100/5,000 gallons: 11’3″L x 11’3″W x 29″H / 11’3″L x 26’3″W x 29″ w/ bladder
Max Tank Closed Dimensions / Weight (Steel / Aluminum)
- 1,000/2,500 gallons: 8’3″L x 12″W x 29″H / 225 / 200 pounds
- 1,500/3,500 gallons: 10’3″L x 12″W x 29″H / 245 / 220 pounds
- 2,100/5,000 gallons: 11’3″L x 12″W x 29″H / 265 / 240 pounds
Liner Material
- 22 ounce High Performance Rubber (HPR) for heavy duty applications
- 22 ounce Vinyl standard material
Colors
*red and yellow only for HPR / vinyl available in the following colors:
- Red
- Yellow
- Orange
- Blue
- Black
Additional Options:
