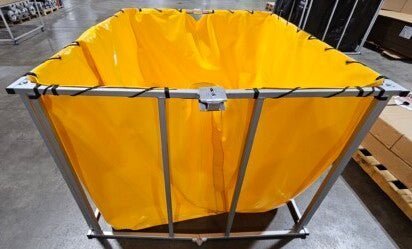

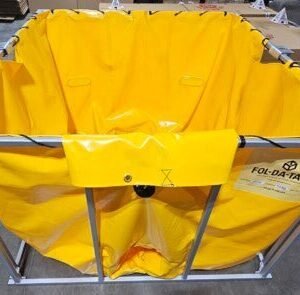

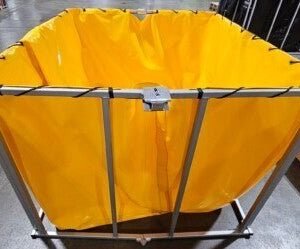

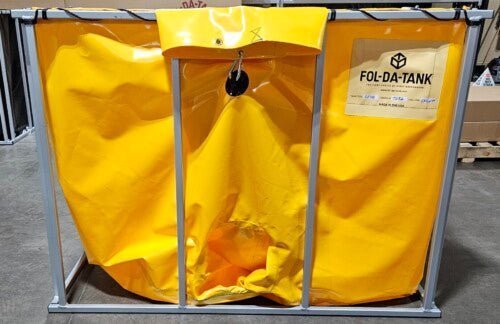

The Fol-Da-Tank framed dielectric testing tank provides a portable solution for high voltage dielectric fluid testing.
The Dielectric Testing Tank provides a clean, controlled environment for immersing electrical equipment in insulating oil or fluid during testing procedures.
The frame tank design incorporates high quality, chemical resistant materials for long lasting performance.
The collapsible design offers efficient storage and transportation.
Applications:
- Mobile testing labs, utility company testing, and electrical maintenance crews.
Features:
- Heavy duty steel or aluminum frame.
- 28 ounce vinyl liner.
- Compatible with dielectric testing fluids.
- Foldable frame allows for quick and easy setup and break down.
Available Sizes / Dimensions / Folded Dimensions / Weight:
Steel
- 685 Gallon: 5’x5’x44″ / 5’x44″x7″ / 112 pounds steel
- 822 Gallon: 5’x6’x44″ / 6’x44″x7″ / 125 pounds steel
- 987 Gallon: 6’x6’x44″ / 6’x44″x7″ / 155 pounds steel
Aluminum
- 685 Gallon: 5’x5’x44″ / 5’x44″x8″ / 90 pounds steel
- 822 Gallon: 5’x6’x44″ / 6’x44″x8″ / 100 pounds steel
- 987 Gallon: 6’x6’x44″ / 6’x44″x8″ / 110 pounds steel
Liner Material:
- 28 ounce vinyl
Colors
- Black
- Red
- Yellow
- Orange
- Blue
Additional Options:
- Compare other collapsible water tank options and all Fol Da Tank options.
