The Newberry Morrison Remote Overfill Package provides containment for small spills that may occur at the fill point during remote filling operations. The package is designed for larger tanks sized at 2,000 gallons and above.
The overfill package is fully installed prior to shipment and includes the following components:
- Remote Overspill Container – 15 gallons / 2 inch outlet
- 2 inch cap with adaptor
- 2 inch check valve
- 2 inch locking ball valve
- 2 inch overfill valve with aluminum drop tube.
- 1 inch locking ball valve
- 2 inch piping and fittings.
- Fully installed on the tank prior to shipment.

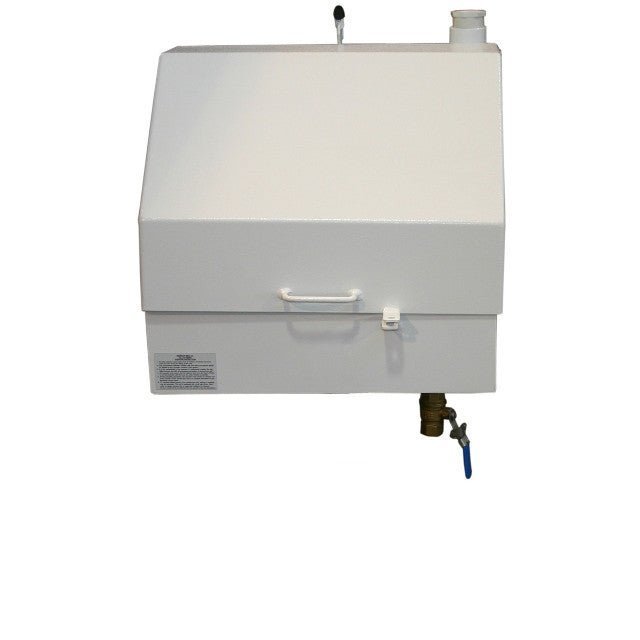

The 15 Gallon Remote overspill container includes the following:
- 15 gallon capacity
- Gas spring cylinder holds the lid in the up position when fueling
- Lockable with a padlock
- Weather-tight enclosure
- Vent cover
- 2 Inch female threaded return pump connection
- 1” NPT drain with locking ball valve
- Base to centerline connection height 30” to 48” pedestal model
- Base to centerline connection height 31” to 47” Four leg stand model
- Container 22-1/2” wide x 24” deep x 24-1/4” height
- 12 gauge steel, powder coated white
- Pipe connection
- powder coated steel
