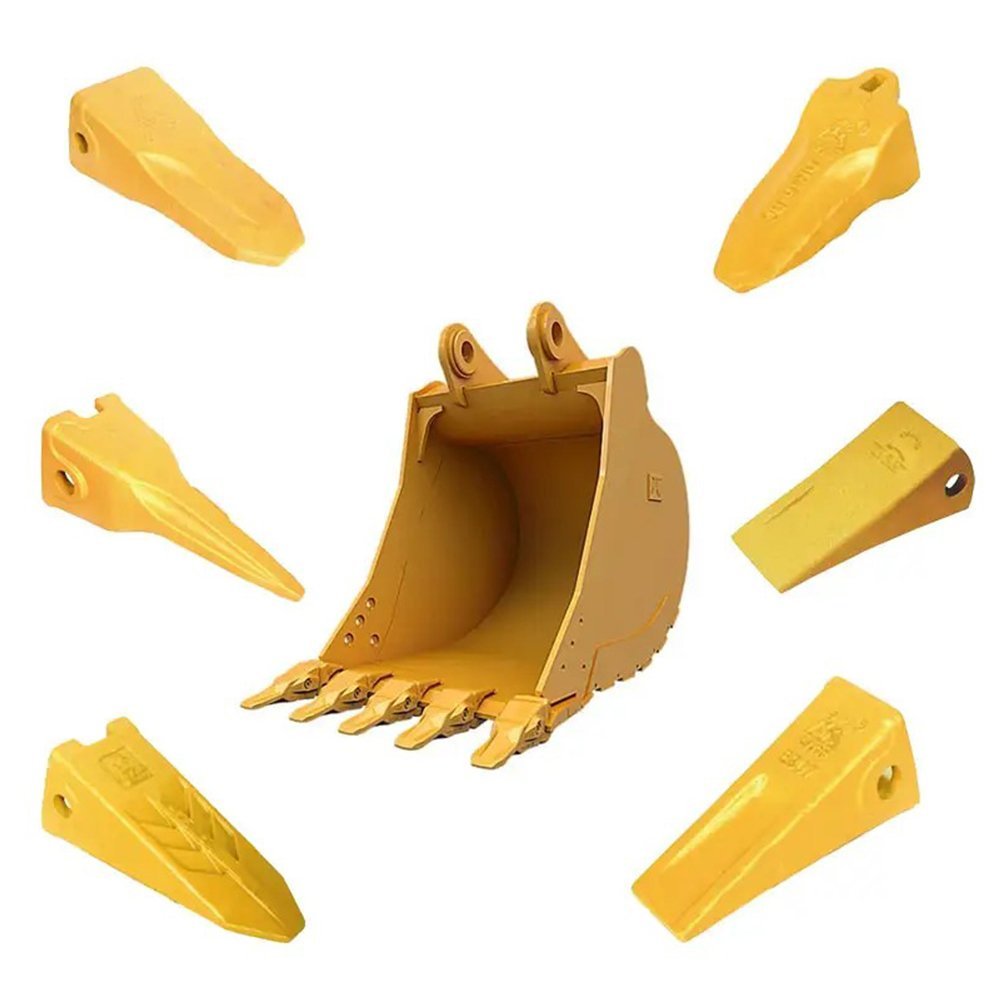

Excavator New Bucket Tooth

Detailed explanation of the outer dimensions of bucket teeth models

Ⅰ. Standard bucket teeth

1. T-type bucket teeth

The outer dimensions are 185mm×135mm×40mm, suitable for digging hard soil, gravel, sand and gravel mixed layers and other strata.

2. WT bucket teeth

The outer dimensions are 177mm×147mm×40mm, suitable for digging loose soil, silt, sandy soil and other strata.

3. L-type bucket teeth

The outer dimensions are 195mm×160mm×40mm, suitable for digging loose soil, sand, sandy rock and other strata.

Ⅱ. Conical bucket teeth

1. RC bucket teeth

The outer dimensions are 145mm×95mm×35mm, suitable for digging hard soil, rock and other strata.

2. TL bucket teeth

The overall dimensions are 140mm×100mm×40mm, suitable for digging medium-hard soil, gravel, sand and gravel mixed layers and other strata.

3. P bucket teeth

The overall dimensions are 175mm×140mm×40mm, suitable for digging medium-hard soil, gravel, sand and gravel mixed layers and other strata.

III. Hook bucket teeth

1. WY bucket teeth

The overall dimensions are 120mm×75mm×22mm, suitable for digging loose soil, silt and other strata.

2. HY bucket teeth

The overall dimensions are 120mm×75mm×22mm, suitable for digging soft soil, soil, silt and other strata.
