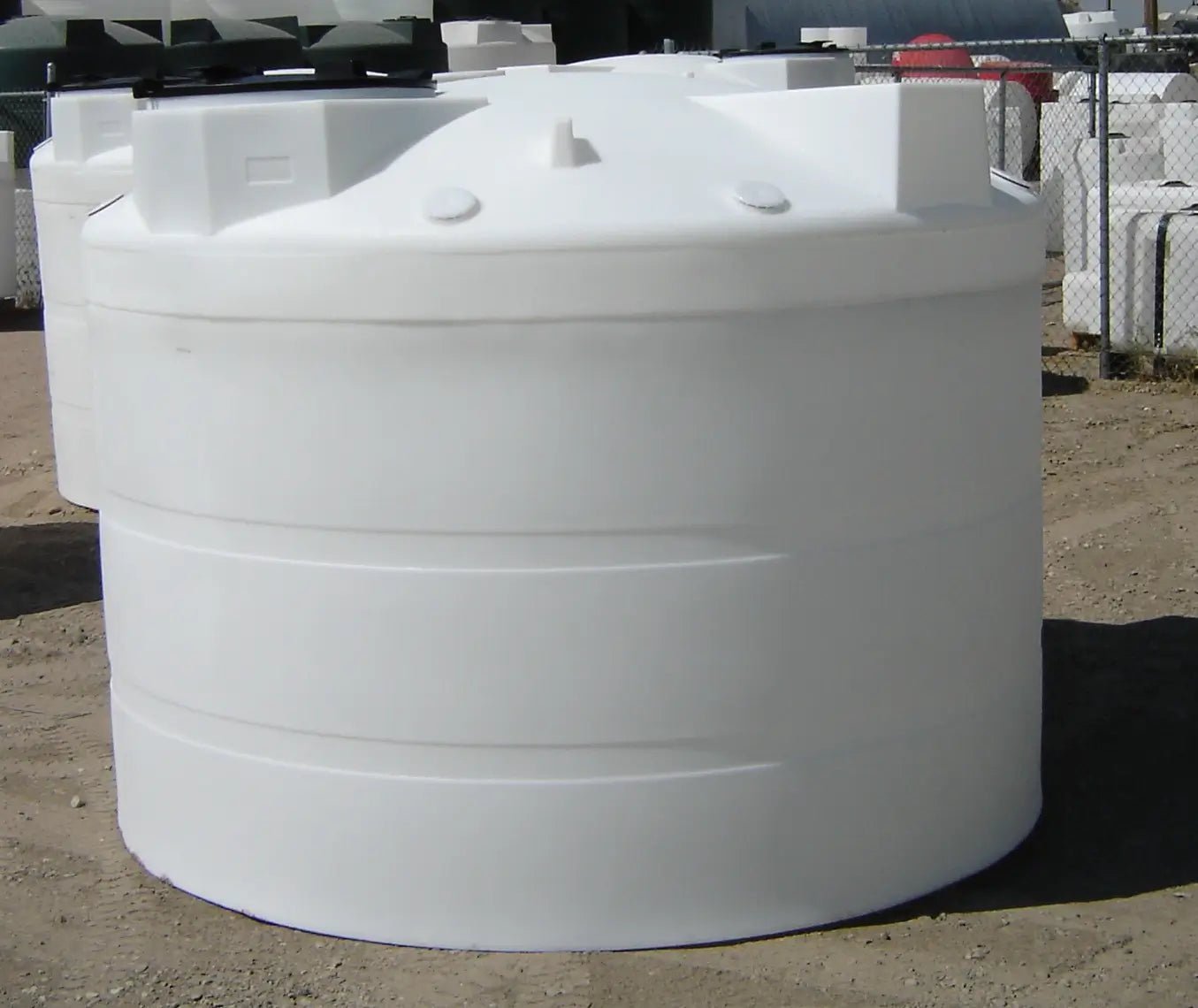

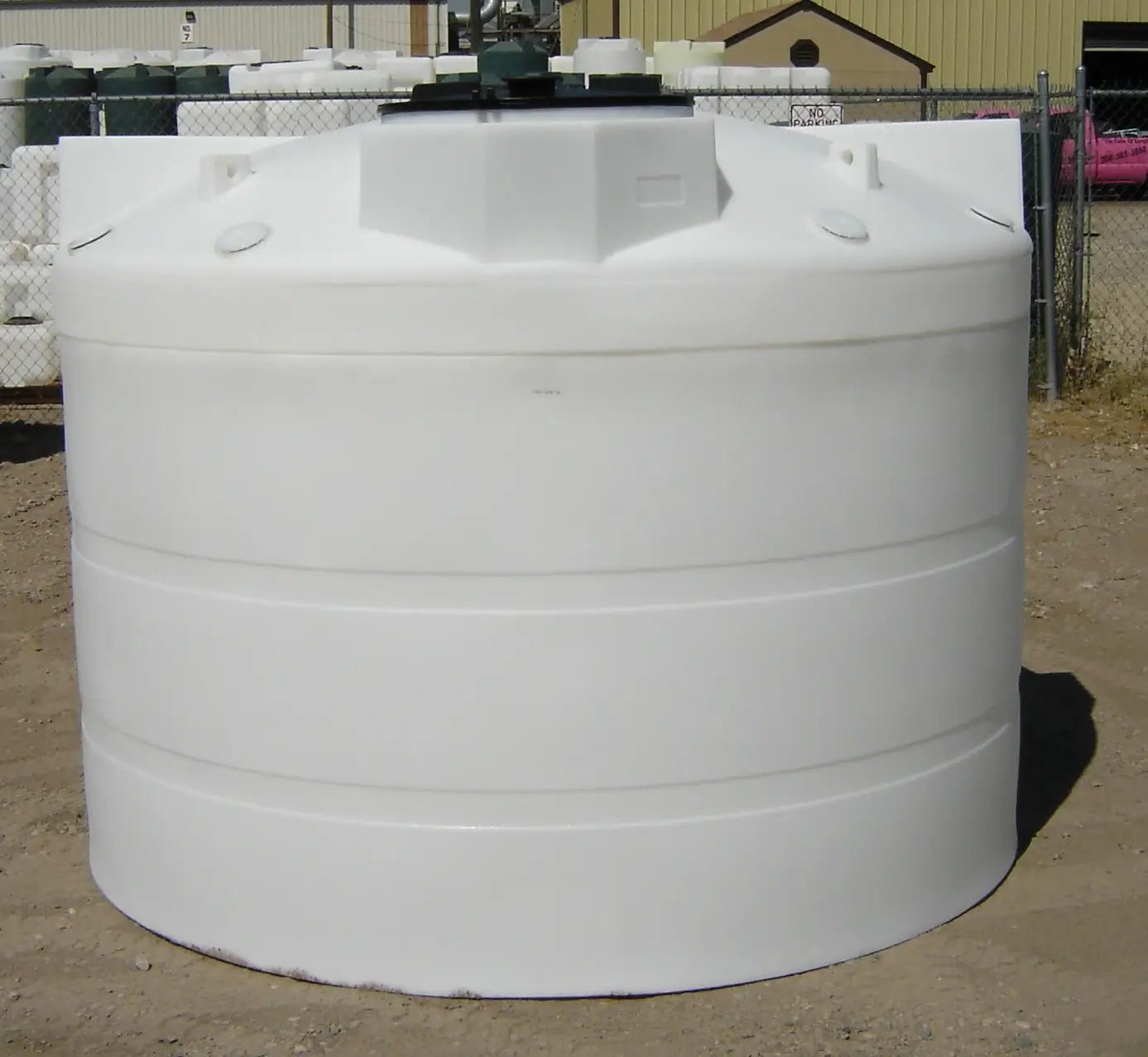

Custom Roto Molding Inc double wall chemical storage tanks provide efficient chemical storage for commercial and industrial use. The chemical storage tanks range in size from 525 gallons to 2,000 gallons and are available in high density polyethylene (HDPE) or cross linked polyethylene (XLPE).
Tank Material:
- HDPE – High Density Polyethylene is a thermoplastic polymer created from petroleum. HDPE has a high impact resistance and melting point.
- XLPE – Cross Linked Polyethylene offers superior heat and chemical resistance, stress cracking resistance and low temperature impact strength. Offers superior corrosion and chemical resistance than HDPE.
Chemical Tank Features:
- 16 inch non-vented locking lid.
- Optional: 2 inch tank to tank kit (EPDM or Viton gaskets).
- Natural white color.
- Choice of HDPE or XLPE material.
Chemical Tank Dimensions (Diameter x Height in inches):
- 525 Gallon: 72″ D x 66″ H / 260 pounds
- 550 Gallon: 60″ D x 94″ H / 280 pounds
- 1,000 Gallon: 90″ D x 72″ H / 470 pounds
- 1,100 Gallon: 102” D x 56″ H / 465 pounds
- 2,000 Gallon: 96″ D x 92″ H / 1,160 pounds
Chemical Tank Spec Sheets (HDPE):
- 525 Gallon Double Wall HDPE spec sheet
- 525 Gallon Double Wall XLPE spec sheet
- 550 Gallon Double Wall HDPE spec sheet
- 550 Gallon Double Wall XLPE spec sheet
- 1,000 Gallon Double Wall HDPE spec sheet
- 1,000 Gallon Double Wall XLPE spec sheet
- 2,000 Gallon Double Wall HDPE spec sheet
- 2,000 Gallon Double Wall XLPE spec sheet
Additional Options:
- Browse other Chemical Tank options.
