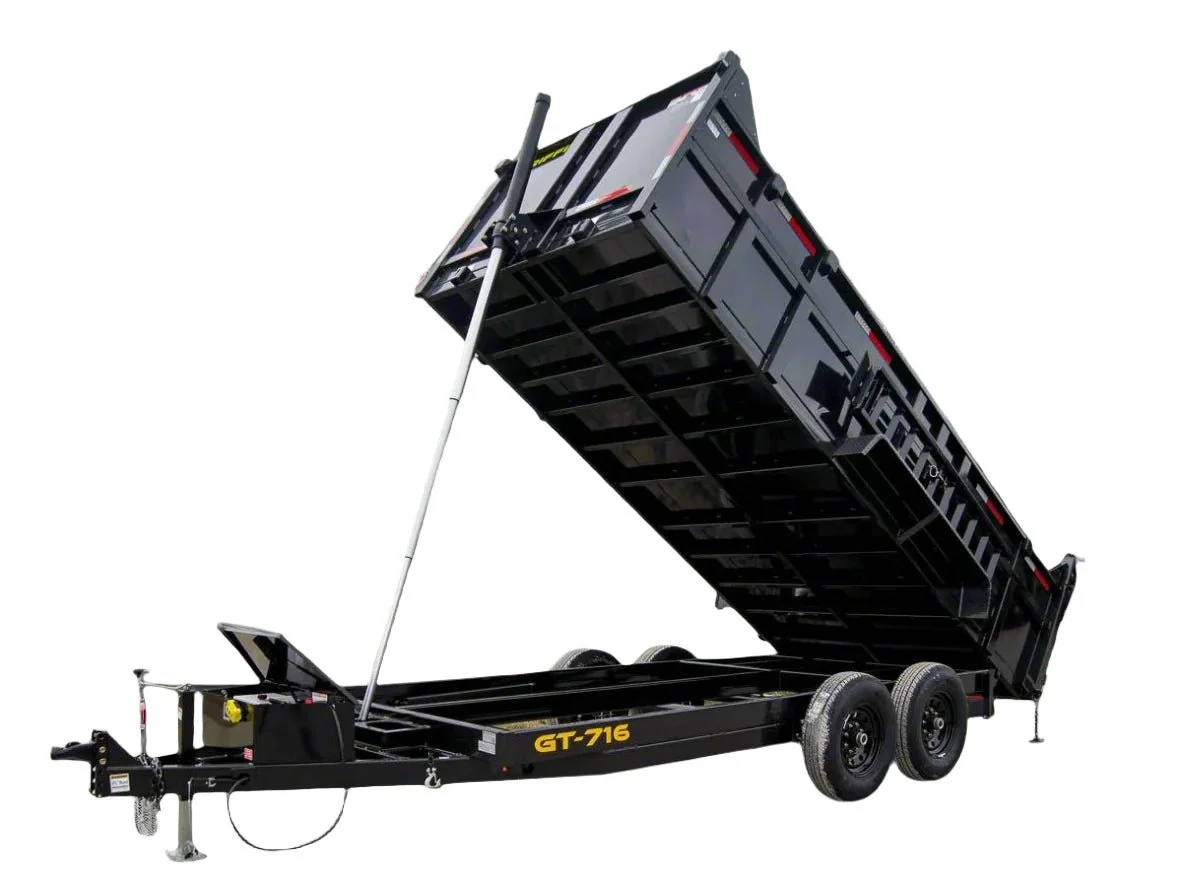

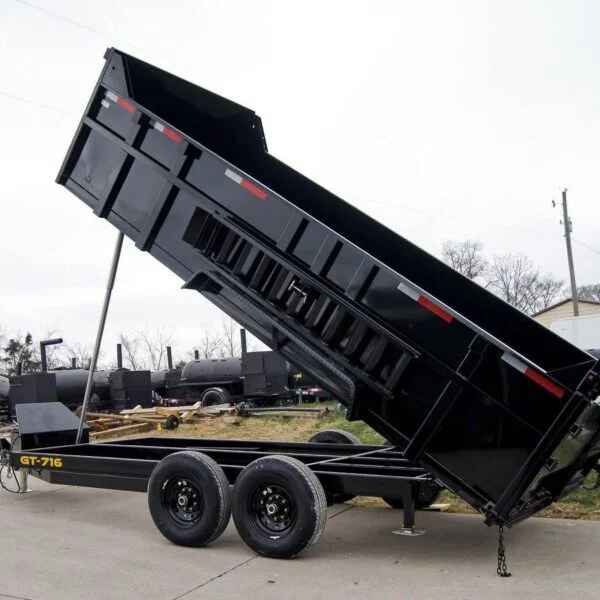

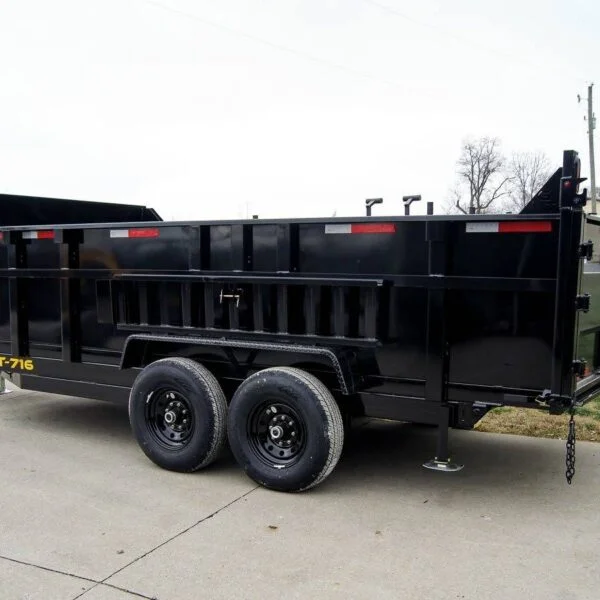

7×16 Telescopic Dump Trailer with 3ft Sides (2) 7K Axles
Features:
The length of the trailer is 16 feet, or 192 inches.
The sidewall height measures 36 inches, providing ample vertical space for a variety of loads.
The width of the trailer is 7 feet, or 82.5 inches.
The floor height is set at 29 inches, facilitating easy loading and unloading.
The coupler height stands at 18 inches, ensuring compatibility with different towing vehicles.
The cross members are constructed from 2″ x 3″ tubes, spaced 16 inches on center for enhanced structural integrity.
The wheels feature a black powder coat finish, offering durability and protection against corrosion.
The coupler is a 2-5/16″ adjustable coupler, allowing for flexibility in towing options.
The tires are 16-inch radial tires designed to provide reliable performance on various terrains.
12v DC Hydraulic Pump – (3200 PSI Pwr Up) (0 PSI Pwr Down)
The spare tire mount is a standard mount, ensuring easy access to a spare tire when necessary.

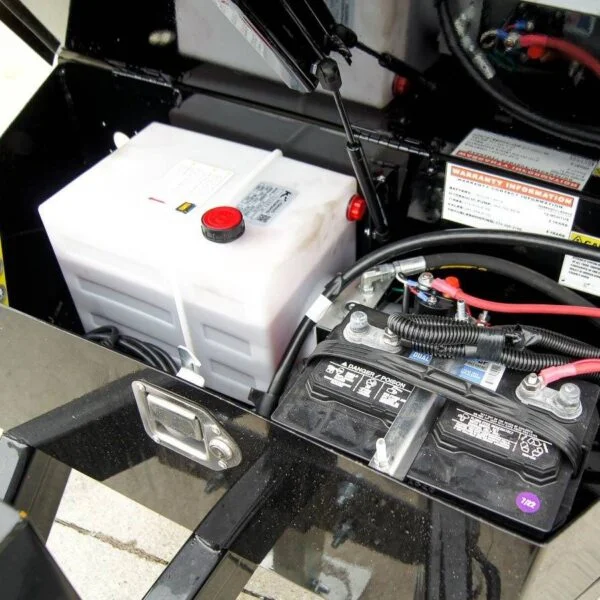

The battery is an Interstate deep cycle marine battery, providing a dependable power supply for the trailer’s hydraulic system.
The ramps are 80-inch C-channel fender-mounted ramps, offering convenient access for loading and unloading.

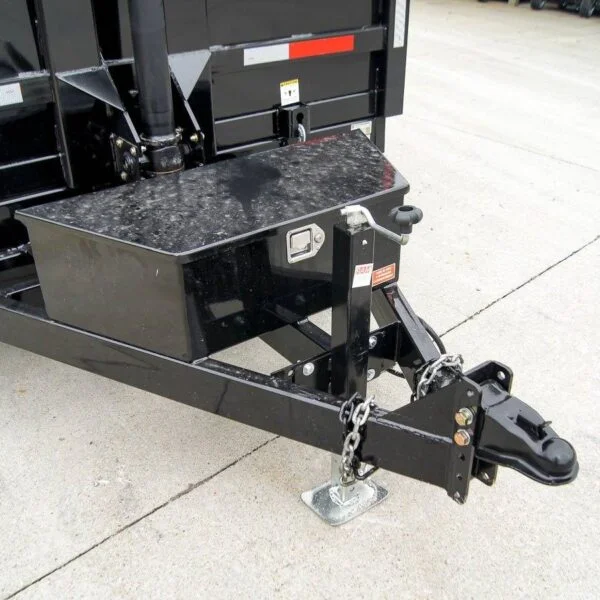

The jack is an adjustable 7000 lb. top wind drop leg jack, ensuring stability and ease of use during loading and unloading.
The lighting system includes amber and red LED lights for improved visibility and safety on the road.
The control box features easy front access with a key lock for added security and convenience.
The wiring harness consists of a 3-piece plug-and-play system, simplifying installation and maintenance.
The fenders are constructed from 14-gauge formed treadplate for maximum strength and durability.
The electric plug is a 7-pin round connector, ensuring a reliable electrical connection between the trailer and the towing vehicle.
The stake pockets are made from 2″ x 4″ tubes, providing additional support and tie-down options for securing loads.
The lift system utilizes a 3-stage telescoping mechanism for efficient and powerful lifting capabilities.
The gussets measure 2″ x 12″ and are located at the front and rear for wall extension support and structural reinforcement.
The floor and walls are made from 10-gauge smooth steel, ensuring durability and strength for heavy loads.
The safety chains include two forged slip hooks measuring 5/16″ x 35″, with a capacity of 11,700 lbs. for secure towing.
The D-rings consist of five 5000 lb. D-rings welded into the floor, providing secure tie-down points for various loads.
The rear gate is designed as a 2-way combination spreader/barn gate for versatile usage and easy access to the trailer’s interior.
The axles are tandem with EZ Lube and galvanized components for easy maintenance and extended lifespan.
The paint finish is a high gloss black powder coat, enhancing the trailer’s appearance while providing added protection.
The suspension system features equalized leaf springs, ensuring smooth towing and stability on the road.
The style of the trailer is low-profile, which improves handling and aerodynamics during towing.
The overall length of the trailer is 192 inches.
The GVWR (Gross Vehicle Weight Rating) is 14,000 lbs., indicating the maximum safe weight for the trailer.
The GAWR (Gross Axle Weight Rating) is 14,000 lbs., representing the maximum weight supported by the axles.
The curb weight of the trailer is 4,855 lbs., which is its weight without any load.
The tongue is constructed from a 2″ x 5″ tube for added strength and stability during towing.
The payload capacity is 9,145 lbs., allowing for substantial hauling capability.
The estimated tongue weight is 580 lbs., ensuring balanced load distribution during transport.
The dump capacity of the trailer is 10,000 lbs., making it suitable for handling heavy loads.
