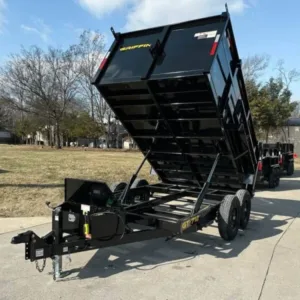

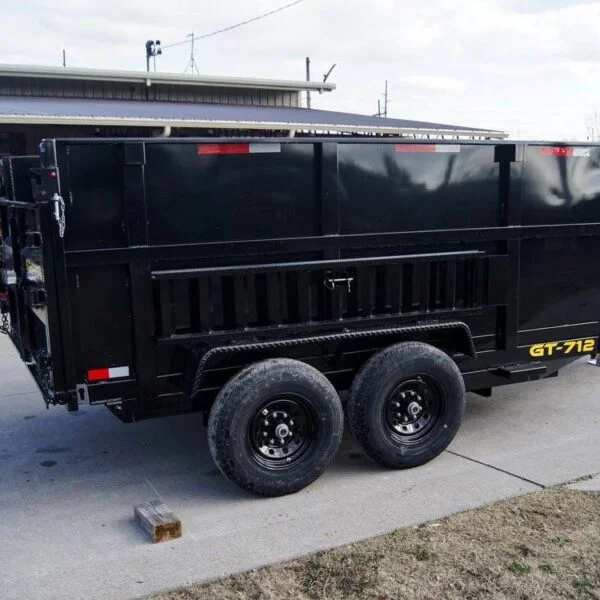

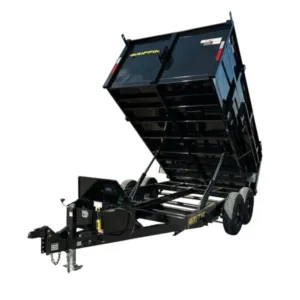

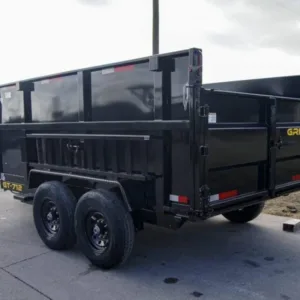

7×12 Hydraulic Dump Trailer with 3ft Sides (2) 6K Axles
Features:
The length of the trailer is 12 feet, or 144 inches.
The sidewall height measures 36 inches, providing ample vertical space.
The width of the trailer is 7 feet, or 82.5 inches.
The floor height is set at 29 inches above the ground.
The coupler height stands at 18 inches from the ground.
The cross members are made of 2″ x 3″ tubes, spaced 16 inches on center.
The wheels are coated in black powder for added durability.
The coupler is an adjustable 2-5/16″ coupler to accommodate various towing setups.
The tires are 16-inch radial tires, designed for smooth performance.

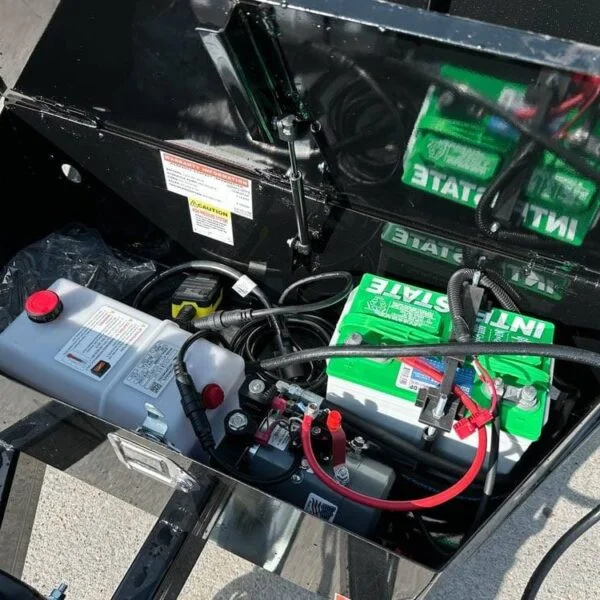

The power unit is a 12v DC hydraulic pump with 3200 PSI for power-up and 1500 PSI for power-down operations.
The spare tire mount is a standard mount, providing easy storage for a spare tire.
The battery is an Interstate deep cycle marine battery for reliable power.
The ramps are 80-inch C-channel ramps, mounted on the fenders for easy access.
The jack is an adjustable, 7000lb. top wind drop leg jack.
The lighting system includes amber and red LED lights for enhanced visibility.
The control box is located at the front, with easy access and a key lock for security.
The wiring harness is a 3-piece plug-and-play system for easy installation and maintenance.

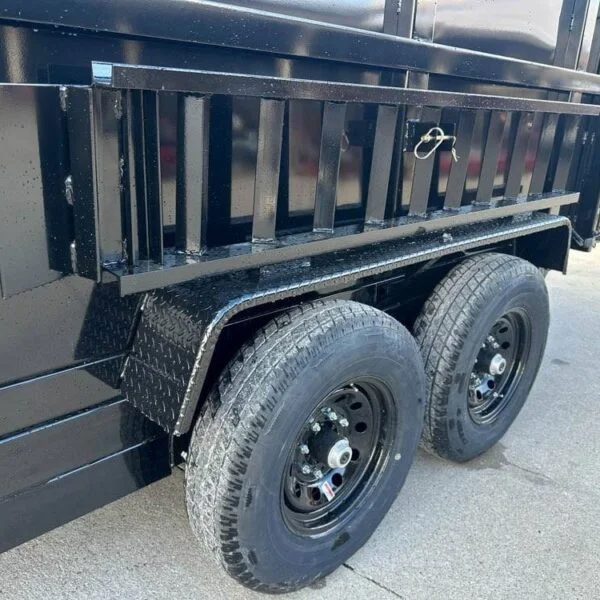

The fenders are made of 14-gauge formed treadplate for added protection.
The electric plug is a 7-pin round connector for a reliable electrical connection.
The stake pockets are 2″ x 4″ tubes for added structural support.

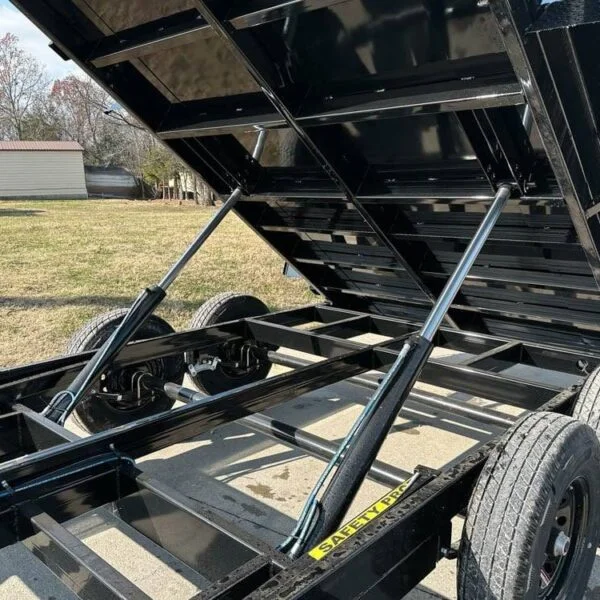

The lift system consists of two 3″ x 30″ hydraulic cylinders for powerful lifting capabilities.
The gussets are 2″ x 12″ in dimension, located at the front and rear for wall extension support.
The floor and walls are made of 10-gauge smooth steel for strength and durability.
The safety chains are 5/16″ x 35″ forged slip hooks, with a capacity of 11,700 lbs.
The integrated tarp system features a fully covered housing for protection.
The D-rings consist of five 5000lb. rings welded into the floor for secure tie-downs.
The rear gate has a 2-way combination spreader/barn design for versatile operation.
The axles are tandem with EZ Lube and galvanized components for long-lasting use.
The paint finish is a high gloss black powder coat for a sleek and durable appearance.
The suspension system uses equalized leaf springs for smooth towing.
The style of the trailer is low-profile for better handling and stability.
The overall length of the trailer is 198 inches.
The GVWR (Gross Vehicle Weight Rating) is 12,000 lbs.
The GAWR (Gross Axle Weight Rating) is 6000 lbs.
The curb weight of the trailer is 3,620 lbs.
The tongue is made of a 2″ x 5″ tube for added strength.
The payload capacity is 8,380 lbs., allowing for heavy-duty hauling.
The estimated tongue weight is 580 lbs.
The dump capacity is 8,000 lbs., making it ideal for large loads.
