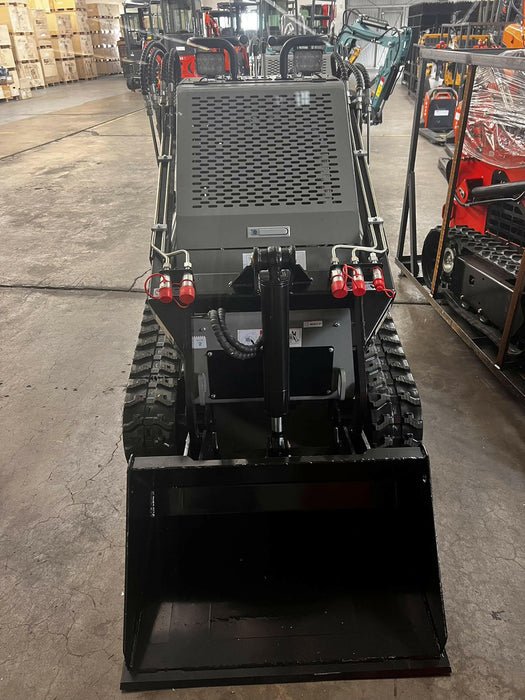

1 Ton, Mini Stand On Skid Loading Mini Crawler | CBT23

Basic Performance:

Rated Loading Capacity: 484 lb
Overall Weight: 2094 lb

Fluid Capacities:

Fuel Tank Capacity: 6.83 gallons
Hydraulic Oil Tank Capacity: 8.72 gallons

Engine:

Model: B&S 23HP
Rated Power: 22.49 hp at 3600 rpm
Maximum Torque: 34.39 lb-ft
Displacement: 38.25 cubic inches
Number of Cylinders: 2
Emission Standard: EPAⅢ

Operating Range:

Maximum Unloading Height: 63.46 inches
Unloading Distance (at maximum height): 24.05 inches
Maximum Height of Bucket Pivot Pin: 91.77 inches
Unloading Angle at Maximum Height: 23°
Bucket Tilt Angle at Full Height: 105°
Bucket Tilt Angle on Ground: 18°

Travel Performance:

Maximum Travel Speed: 2.48 mph
Track Width: 40.55 inches
Climbing Ability: 25%

Hydraulic System:

Main Pump Type: Gear Pump
System Safety Pressure: 22 MPa
Maximum Flow of Main Pump: 75.6 L/min
